Hey there! As a supplier of 11kv diesel generators, I often get asked about the installation dimensions of these powerhouses. In this blog, I'll break down everything you need to know about the installation dimensions of an 11kv diesel generator.
Why Installation Dimensions Matter
First off, let's talk about why installation dimensions are so important. When you're setting up an 11kv diesel generator, you need to make sure it fits in the space you've allocated for it. If the generator is too big, you might run into issues with installation, maintenance, and even ventilation. On the other hand, if it's too small, you might not be able to get the full power output you need. So, getting the right dimensions is crucial for a smooth and efficient installation.
Key Installation Dimensions
Now, let's get into the nitty - gritty of the installation dimensions. There are a few key measurements you need to consider:
Length, Width, and Height
The overall length, width, and height of the generator are the most basic dimensions. These measurements will tell you how much floor space and vertical space the generator will take up. For an 11kv diesel generator, the length can range from around 3 to 6 meters, the width from 1.5 to 2.5 meters, and the height from 2 to 3 meters. But these are just rough estimates, and the actual dimensions can vary depending on the model and manufacturer.
Clearance Space
In addition to the physical dimensions of the generator itself, you also need to consider the clearance space around it. This is important for safety, maintenance, and ventilation. You should leave at least 1 meter of clearance on all sides of the generator. This will allow technicians to access the generator for maintenance and repairs, and it will also ensure proper air circulation to prevent overheating.
Exhaust System Dimensions
The exhaust system is another important part of the installation. The exhaust pipes need to be the right size and length to ensure proper exhaust flow. The diameter of the exhaust pipes can range from 100 to 200 millimeters, depending on the power output of the generator. The length of the exhaust pipes should be kept as short as possible to minimize back - pressure, but you also need to make sure they are long enough to direct the exhaust away from the generator and any occupied areas.
Fuel Tank Dimensions
If your 11kv diesel generator has an on - board fuel tank, you need to consider its dimensions as well. The size of the fuel tank will depend on the runtime you need. A larger fuel tank will allow the generator to run for a longer period of time without refueling. The dimensions of the fuel tank can vary widely, but a typical fuel tank for an 11kv generator might have a capacity of 500 to 1000 liters and dimensions that fit within the overall footprint of the generator.
Special Considerations for Different Applications

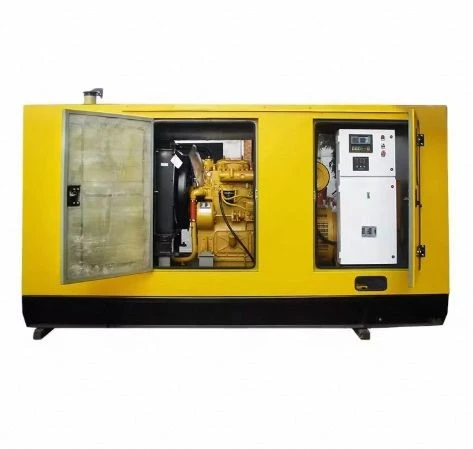

The installation dimensions can also vary depending on the application of the generator. For example, if you're using the generator for a Mining Diesel Generator in a mine, you might need to consider the limited space in the mine shaft. You'll need to make sure the generator can be easily transported and installed in the confined space.
If you're looking for a High Voltage Diesel Generator for an industrial facility, you might have more space to work with, but you'll also need to consider the electrical connections and the overall layout of the facility.

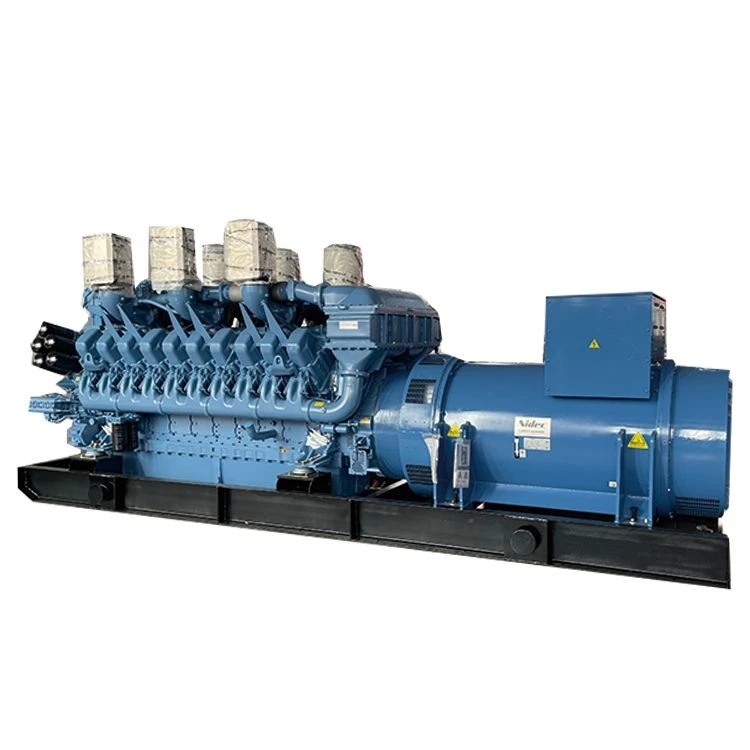

And if you're interested in a 6.6kv Diesel Genset, the installation dimensions will be different from an 11kv generator, but the same principles apply. You'll need to consider the size, clearance space, exhaust system, and fuel tank.
Installation Tips
Here are some tips to help you with the installation:
- Plan Ahead: Before you purchase an 11kv diesel generator, measure the space where you plan to install it. Make sure you have enough room for the generator and all the necessary clearance space.
- Follow the Manufacturer's Instructions: Each generator comes with specific installation instructions from the manufacturer. Make sure you read and follow these instructions carefully to ensure a safe and proper installation.
- Get Professional Help: If you're not familiar with generator installation, it's a good idea to hire a professional. They have the experience and knowledge to install the generator correctly and safely.
Conclusion
In conclusion, the installation dimensions of an 11kv diesel generator are an important consideration when setting up your power system. By understanding the key dimensions, clearance space, and special considerations for different applications, you can ensure a smooth and efficient installation.
If you're in the market for an 11kv diesel generator, or if you have any questions about installation dimensions, don't hesitate to reach out. We're here to help you find the right generator for your needs and ensure a successful installation.
References
- Diesel Generator Installation Manuals from various manufacturers
- Industry standards for high - voltage generator installations
